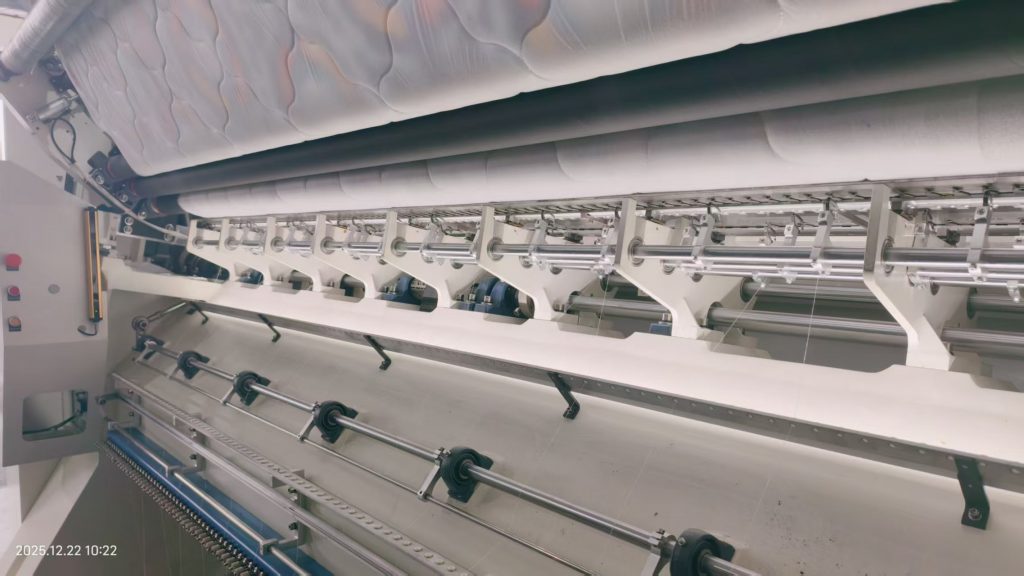

High speed heavy duty Mattress Quilting Machine for mattress fabric quilting

Quilting machine, computer quilting machine, WT-3200 quilting machine Features:
1、最新设计的气动送料机构，安装简单、快速、平稳；
2、一体化倾斜式机身设计，整体外观大方，操作简便，绗缝花纹完美；
3、首创的红外断电装置，非接触式，性能可靠；
4、国内首创绗缝独立花型，采用气动剪线技术，剪线速度快；
5、最新设计的增强型双臂锻炼机构，经久耐用，无需加油，速度快，振动小；
6、不同厚度的绗缝布，整体压板可轻松操作；
7、完善的安全保护装置
8、新一代设计控制系统，性能可靠，操作简便，绗缝精度高；
9、CAD 绘图方法可以放大、缩小、任意修改，方便快捷；
10、强大的图案组合（覆盖 360 度、180 度图案），可存储 10 万多种图案
11、运行状态检测和提示，机器运行情况一目了然；
12、计算机图案自动补偿功能。
推出升级创新功能：
1、织物厚度自动调节装置可自动调节压辊间隙，花型不易变形，立体感强；
2、升级版减震料斗，解决了厚重织物在绗缝过程中来回抖动的问题；
3、新型料斗固体平衡系统，减少振动，降低噪音，有助于提高机器的性能和稳定性；
4、特殊的专业布带系统，花纹稳定，布料光滑不易起皱和划伤；
5、增强型床身、四导轨滑块、加强型移动框架，高速运转时机器工作稳定，振动小；
6、豪华海绵框架。

参数

尺寸（长宽高）	5100X1500X2000（毫米）
重量	4500kg
被子宽度	2450 毫米
旋转速度	600-1200RPM
生产速度	80-280 米/小时
织针尺寸	130/21 140/22 160/23 180/24
织针排列	(50.8 , 76.2 , 127) (76.2, 76.2 , 152.4)
最大水平移动量	450 毫米
机针空间	25.4 毫米
电压	380 伏/220 伏 50 赫兹/60 赫兹
针迹尺寸	2-7 毫米
电源	10 千瓦
绗缝厚度	≤80毫米

A multi-needle quilting machine is a specialized type of sewing machine designed to speed up the process of quilting. Unlike a traditional sewing machine, which uses a single needle, a multi-needle machine uses multiple needles that can stitch in parallel. This allows quilters to create more intricate patterns, and it’s especially useful for large-scale quilting projects.

Key Features of Multi-Needle Quilting Machines:

1.Multiple Needles: These machines can have anywhere from two to 10 or more needles. This setup enables the machine to create more complex stitch patterns, such as decorative and custom stitches, in one pass.

2.Automatic Thread Trimming: Many models come with automatic thread trimmers that cut both the top and bobbin threads at the end of each seam.

3.Thread Tension Controls: Since there are multiple threads being used simultaneously, these machines usually have separate tension controls for each needle.

4.Larger Quilting Area: Some multi-needle machines have a larger quilting area (also called a throat space) which makes it easier to handle bigger quilt projects.

5.Embroidery Capabilities: Many multi-needle machines also function as embroidery machines. They can handle both quilting and embroidery designs, so you can combine decorative stitches and patterns within your quilts.

A mattress quilting machine is a heavy-duty industrial machine specifically designed to create quilted patterns on mattress covers, pads, or toppers. These machines are used primarily in the manufacturing industry for mass production of mattresses but can also be found in specialized facilities that make custom or high-end mattresses. The quilting on these products not only adds a decorative element but also improves the comfort and durability of the mattress by helping to evenly distribute the padding and batting inside.
